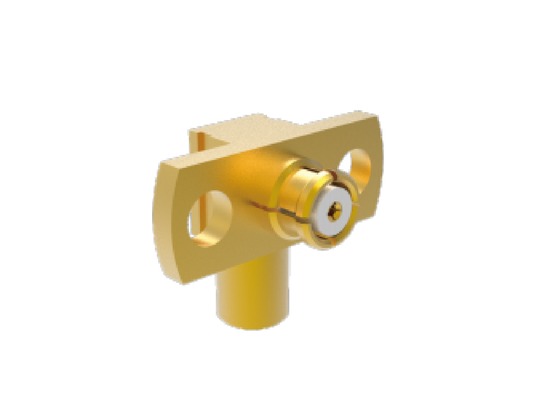

50Ω 18GHz SMP Female SMP Jack Right Angle 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
|
Datos del producto:
Pago y Envío Términos:
|
Descripción detallada del producto
| Nombre del producto: | Conector de cable SMP | Modelo: | SMP-KWFB2-19 |
|---|---|---|---|
| Rango de frecuencia: | 0,3MHz-18GHz | Impedancia: | 50Ω |
| DWV: | 500V | Resistencia de aislamiento: | ≥5000MΩ |
| Director central: | ≤6mΩ; Aleación de cobre, chapada en oro. | Conductor exterior: | ≤3mΩ; Aleación de cobre, chapada en oro. |
| Aisladores: | El PETE | VSWR: | ≤1,3 |
| Pérdida de inserción: | ≤ 0,25 dB | Temperatura: | -55°C ~ 125°C |
| Durabilidad: | 500 ciclos | ||
| Resaltar: | 18GHz SMP female RF connector,50Ω right angle SMP jack,Aerospace RF connector with flange |
||
50Ω 18GHz SMP Female SMP Jack Right Angle 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
The SMP series is a miniature push-on RF coaxial connector. It features compact size, light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 40 GHz. The SMP plug features three interface types: full detent, limited detent and smooth bore. It supports blind-mate interconnection and enables both axial and radial floating of the connection structure. As one of the most widely used RF coaxial connectors, it is suitable for RF and microwave signal transmission as well as modular dense installation scenarios. It is extensively applied in vehicle-borne, ship-borne and satellite-borne application.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors
50Ω 18GHz SMP Jack Right Angle 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
Model No.: SMP-KWFB2-19 ( Cable OD2.2 mm )
50Ω 18GHz SMP Jack Right Angle Aerospace RF Connectors Mating for .086 Cable
Model No.: SMP-KWFB2-22 ( Cable OD2.2 mm )
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP .086 cable connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
