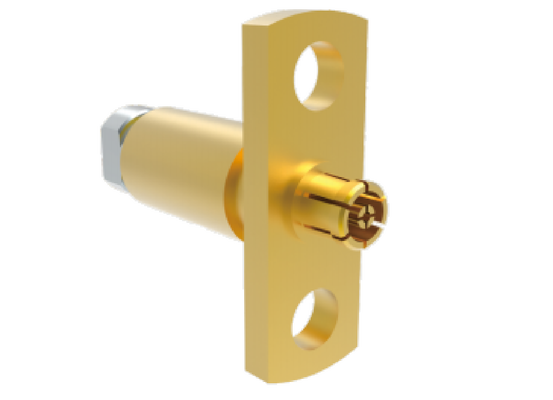

50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086
|
Datos del producto:
Pago y Envío Términos:
|
Descripción detallada del producto
| Nombre del producto: | Conector de brida hembra SMPM | Modelo: | SMPM(M)-KFB2-17 |
|---|---|---|---|
| Rango de frecuencia: | 0.3MHz-50GHz | Impedancia: | 50Ω |
| DWV: | 500V | Resistencia de aislamiento: | ≥5000MΩ |
| Director central: | ≤8mΩ; Aleación de cobre, chapada en oro. | Conductor exterior: | ≤3,5 mΩ; Aleación de cobre, chapada en oro. |
| Aislante: | Pei | VSWR: | ≤1.45 |
| Pérdida de inserción: | ≤0,4 dB | Cable de apareamiento: | Cable .086 de baja pérdida |
| Temperatura: | -55°C ~ 125°C | Durabilidad: | 500 ciclos |
| Resaltar: | 50GHz SMPM female flange mount connector,Aerospace RF connector with 50Ω impedance,Low loss cable SMPM connector .086 |
||
50Ω 50GHz SMPM Female Flange Mount Mating for Low Loss Cable .086 Aerospace RF Connectors
The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.
SMPM Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMPM RF Coaxial Connectors
50Ω 50GHz SMPM Female Flange Mount Mating for Low Loss Cable .086 Aerospace RF Connectors
Model No.: SMPM(M)-KFB2-17
Technical Data:
| Items | SMPM(M)-KFB2-17 | |||
| Frequency Range | 0.04GHz~18GHz | 18GHz~26.5GHz | 26.5GHz~40GHz | 40GHz~50GHz |
| VSWR | ≤ 1.25 | ≤ 1.3 | ≤ 1.35 | ≤ 1.45 |
| Insertion Loss | ≤ 0.25dB | ≤ 0.3dB | ≤ 0.35dB | ≤ 0.45dB |
Note: Please contact sales freely for more product information.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMPM connector aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
