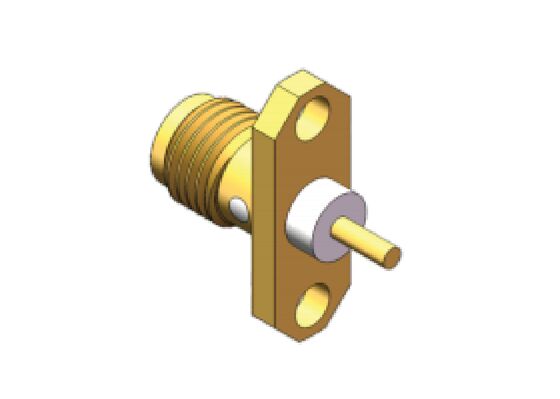

50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis
|
Datos del producto:
Pago y Envío Términos:
|
Descripción detallada del producto
| Nombre del producto: | Conector de RF SMA | Modelo: | SMA-KFD376 |
|---|---|---|---|
| Rango de frecuencia: | 0,3MHz-18GHz | Impedancia: | 50Ω |
| DWV: | 750V | Resistencia de aislamiento: | ≥5000MΩ |
| Director central: | Aleación de cobre, chapada en oro. | Conductor exterior: | Aleación de cobre, chapada en oro. |
| Método de montaje: | Montaje de brida de 2 orificios | Género: | Masculino |
| Aisladores: | PTFE | solicitud: | Dispositivo de prueba de RF, chasis, telecomunicaciones |
Copper Alloy Female/Jack 2 Hole Flange Mount SMA RF Connector Up To 18GHz
Product Description
The SMA RF connector is an extremely widely used small threaded RF coaxial connector. It can be found in a variety of communication equipment and test instruments.
Core Features:
1) Compact Size, Space-Saving
As an ultra-miniature connector, the SMA RF connector is approximately half the size of a traditional N-type connector (about 1/5 of its volume) and extremely light in weight. This makes it ideal for use in electronic devices with compact spaces and high-density wiring requirements, such as PCBs, micro-modules, and portable instruments.
2) Wide Frequency Range, Excellent Performance
This is one of the biggest advantages of the SMA RF connector. It features an extremely wide operating frequency range, usually up to 0 - 18 GHz, and some high-quality or specially designed models can even extend to 26.5 GHz. It can effectively reduce reflection and loss during high-frequency signal transmission, ensuring signal integrity.
3) High Reliability for the Connection
Different from the bayonet connection of BNC connectors, the SMA RF connector adopts a threaded locking mechanism. This design ensures a very firm connection, with excellent vibration and impact resistance, which can effectively prevent accidental loosening in harsh environments and guarantee long-term connection stability.
Technical Data
Outline Dimension: Copper Alloy Gold Plating Female 2 Hole Flange Mount SMA RF Connector up to 18GHz
Applications
Xi'an Elite Electronics is a leading manufacturer of Systematic Interconnection Solutions, serving industries including:
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Measurement equipment
- Electronics
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packing & Shipping
Packaging: Each Copper Alloy SMA RF Connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
