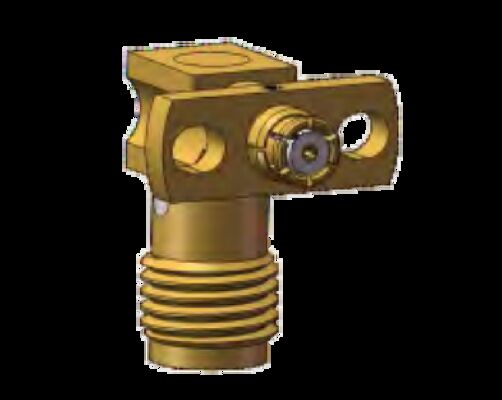

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component
|
Datos del producto:
Pago y Envío Términos:
|
Descripción detallada del producto
| Nombre del producto: | Adaptador de ángulo recto SMA a SMP hembra a hembra | Modelo: | SMA/SMP-KWFK7 |
|---|---|---|---|
| Rango de frecuencia: | 0.3MHz a 18GHz | Alojamiento: | Aleación de cobre, chapado en oro. |
| Contactos: | Cobre de aleación, oro de paleta | Aislante: | PTFE |
| Resistencia de aislamiento: | > 5000 MΩ | DWV: | 500V |
| Inminencia: | 50Ω | Longitud: | máximo 20,1 mm |
| Temperatura: | -55℃~+125℃ | en stock: | >300 piezas |
| Resaltar: | Right Angle SMA to SMP adapter,SMA Female to SMP Female connector,RF coaxial adapter 0.3MHz-18GHz |
||
Product Description:
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of SMA to SMP Jack to Jack right angle adapter: SMA/SMP-KWFK7 Up to 18GHz
Other similar model SMA to SMP Female to Female right angle adapter:
Other model SMA Female to SMP Male Right Angle Adapter:
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for Different Length SMP Straight Adapter are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler...
Packing and Shipping:
Packaging for SMA to SMP Right Angle Adapter:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMA to SMP right angle Adapter comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMA to SMP Right Angle Adapter is placed in caron. We will supply the tracking No after shipping.
